Semiconductor and MEMS structures are difficult to visualize for even the most seasoned EDA professional - and ever-increasing
design and fabrication process complexity compounds the issue daily. Editor screen-shots or simple 3d GDSII views are no longer
enough to capture the full complexity of your design structures.
From sober engineering diagrams to eye-catching multitextured full-perspective displays, from plan views of routing to cut-aways deep into the substrate, Koala blows away problems of scale and complexity by presenting your designs in eye-catching fluidly animated 3D.
| |||||||||||||||||||

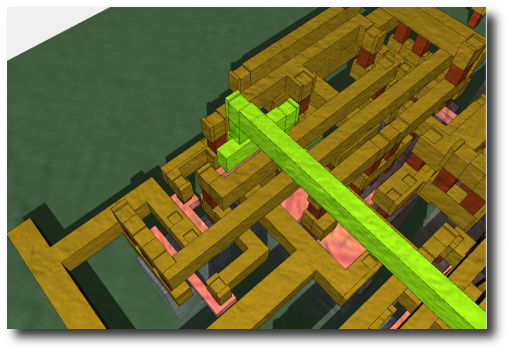

 By rendering the traced GDSII layers in a strongly contrasting color, individual nets are highlighted. In these images the via fills have been separately derived and displayed using the corresponding metal properties. | |||||||||||||||||||
|
